Read:04 | CSS Grid

Game: Grid Garden by Flexbox Froggy

Notes from playing the Grid Garden game

Setting up the Parent Container

• The parent (container) will set the display property to grid
• The parent will define the grid-template-columns and grid-template-rows with % values.
  • Ex: To make 5 column layout, 100 / 5 is 20, so 20% grid-template-columns: 20% 20% 20% 20% 20%;
  • You can also use the repeat feature like this: grid-template-columns: repeat(8, 12.5%);
• There is also a unit known as fr when setting the template, it’s a fraction of the total units you want, like this: grid-template-columns: 1fr 5fr; This means of a 6-column-wide layout concept, have 1 column be 1/6th of the page and the 2nd column to be 5/6ths of the page

Horizontal axis with grid Columns

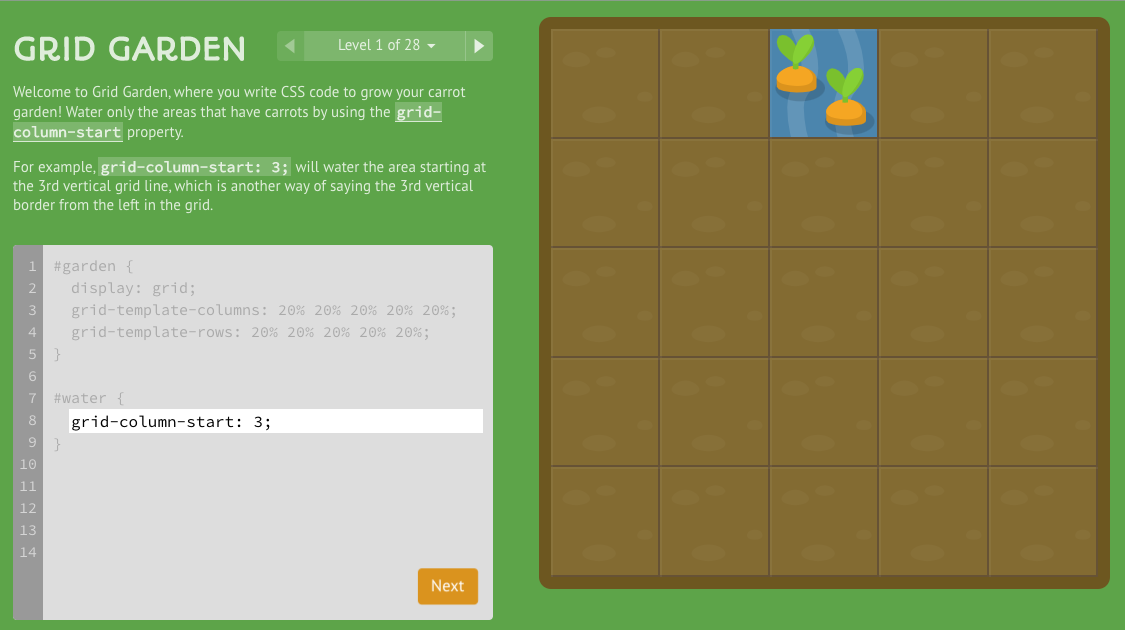

• The child item (like the #water in the above image) can be told where to start: grid-column-start: 3;
  • Use grid-column-end: as well if you want the item to span mulitple columns

    FYI: in the usual case, the end is not inclusive so add 1

• Using negative values is a little weird, so be sure to look it up before using it
• If you use the span keyword it will end that many columns away from your start: grid-column-end: span 5; means keep it across 5 columns no matter where you start (as opposed to just end: 5 means stop at column 5 specifically)
  • You can do thte same thing with start while defining the specific end and spanning from start

    NOTE: There is a short hand that could like like this: grid-column: 4 / 6;

Vertical axis with grid Rows

• So grid-row-start: 3 starts on the third row down the box like in the image above

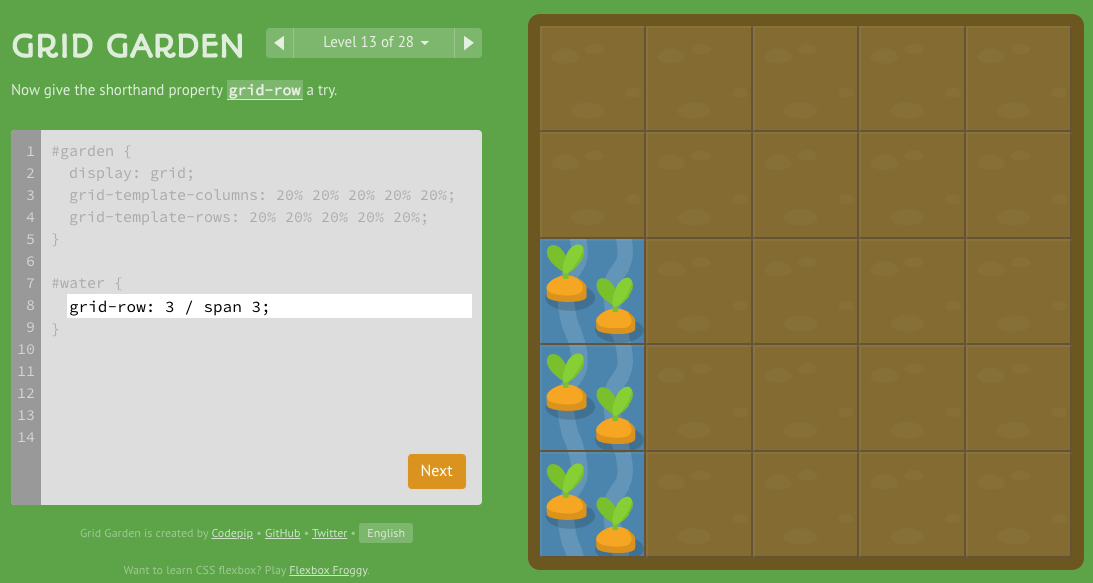

• Here is a screenshot showing the short hand vertical / row property:

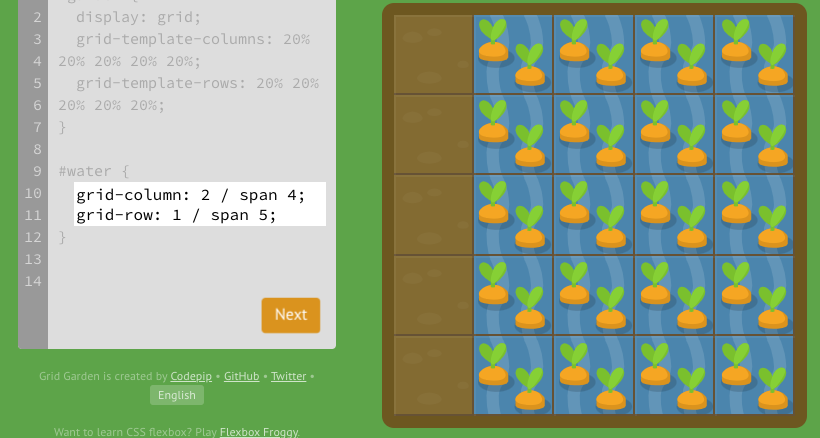

• Here is summary snap shot of using BOTH column and row shorthand to span across a large section:

NOTE: If you wanna get crazy, there is an even SHORTER short hand: grid-area: 1 / 1 / 3 / 6; (row-start, column-start, row-end, column-end respectively)

• The order property exists like in flexbox to dictate the order of things on the page outside the default source ordering.
